Applications

High temperature

SSTP

Ref:
2046 11-2020 TA NDA

Gassoflex SSTP is a hose designed with a combination of layers of PP, polyamide, PTFE and fiberglass to be able to withstand high temperatures of up to 240 ºC without losing its characteristics of flexibility and robustness. Thanks to its internal and external 316L stainless steel spirals, it can be used in the most extreme and corrosive external conditions. Its light weight makes it an alternative to heavy rubber hoses for applications such as bitumen, hot air, thermal oil, etc., for loading/unloading trucks, wagons, plants and even marine applications.

Material

Inner coil: 316L (S) stainless steel
Outer Spiral: 316L Stainless Steel (S)
Inner lining: Polyamide / PTFE / Fiberglass (TP)
Cover: Polyester fabric / PVC

Characteristics

Standard EN 13765:2018
Temperature range: -30 °C to +240 °C
Safety factor 5:1
Vacuum 0.9 bar
Roll length 30 m. ask for other lengths

Sectors

Marine

Chemistry

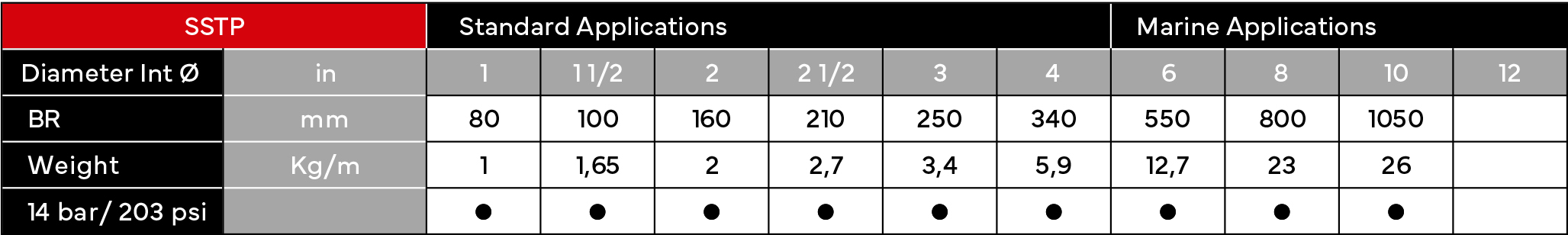

Technical specifications
