Ref. 2046 11-2020 TA NDA
Gassoflex SST is recommended for the suction and/or discharge of a wide variety of highly corrosive chemical products that are compatible with PTFE and stainless steel, such as phosphoric acid, naphtha and nitric acid in low concentrations, among others. It is suitable for use in the loading and unloading of tankers and railcars, in plants and in marine applications.
Material
Inner coil: 316L (S) stainless steel
Outer Spiral: 316L Stainless Steel (S)
Inner lining: PTFE (T)
Cover: Polyester fabric / PVC
Characteristics
Standard EN 13765:2018
Temperature range: -30 °C to +100 °C
Safety factor 5:1 (1“-10”), 4:1 (12")
Vacuum 0.9 bar
Roll length 30 m. ask for other lengths
Sectors

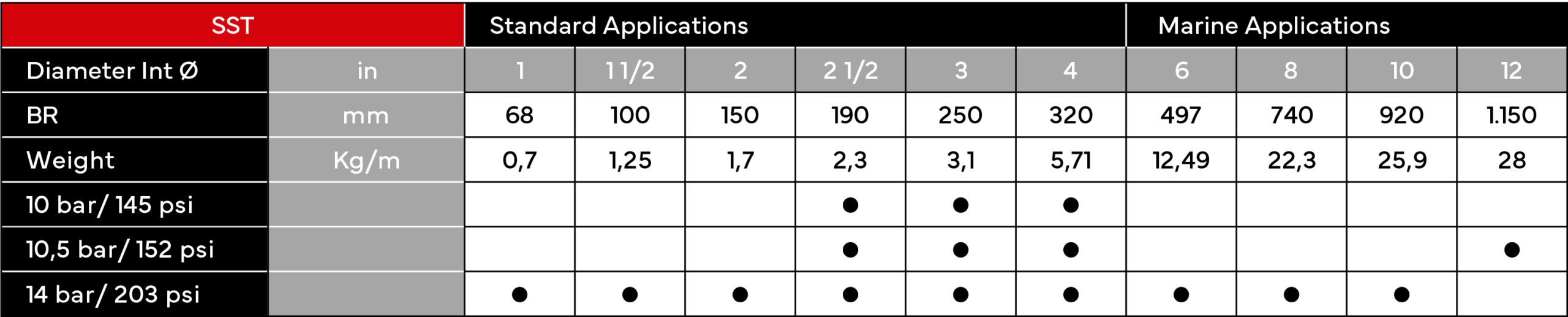

Technical specifications
