Applications

Core Flow-B1

Ref:

Catalog_PTFE hoses Gassó

Medium-wall helical PTFE (polytetrafluoroethylene) suction/pressure hose with external vacuum wire and high tensile strength stainless steel braid. The hose has very good resistance to vacuum and kinking.

PTFE antistatic version also available

See specifications >

Material

Inner tube: PTFE. ( antistatic version also available)

Reinforcement: vacuum wire.

Coverage: tensile resistant stainless steel braid.

Characteristics

Standard: FDA/CE 1935/2004, EU 10/2011, USP VI, 3-A, EN45545-2-2013, ATEX , 3.1 Materials

Temperature range: from -70ºC to +260ºC

Sectors

Pharmaceutical

Food

Chemistry

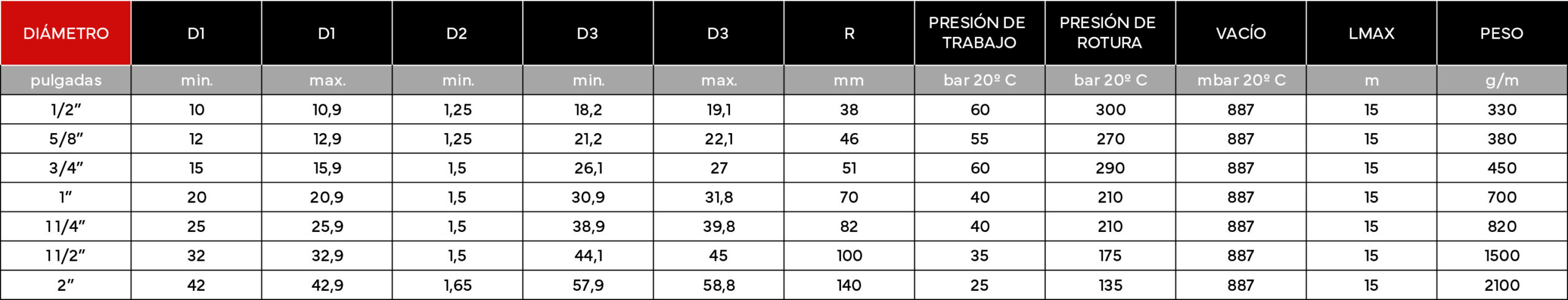

Technical specifications

Clamp

Hose clamp

Supertop UPE FDA

Pure-Flow

Sil RW
