MarineReels
AGE
Ref:
2046 11-2020 TA NDA
Gassoflex AGE is recommended for the delivery and/or suction of fuels, oils and lubricants in tank trucks, wagons or at the plant, but thanks to the combination of its aluminium and galvanised steel spirals it is significantly lighter, making it possible to use it even in large diameter marine applications.
Material
Inner Spiral: Aluminium (A)
Outer Spiral: Galvanised Steel (G)
Inner lining: Polypropylene
Cover: Polyester fabric / PVC
Characteristics
Standard EN 13765:2018
Temperature range: -30 °C to +100 °C
Safety factor 5:1
Vacuum 0.9 bar
Roll length 30 m. ask for other lengths
Sectors
Hydrocarbons

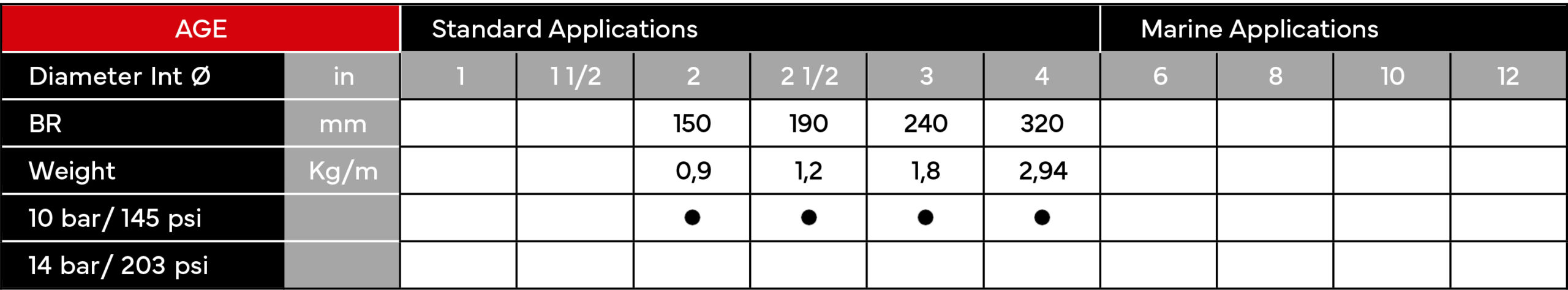

Technical specifications
